ISO F Bolt Type Flange Table:
| Stock ID | A | B (Recomended Tube Size) |
|---|---|---|
| ISOF63-BL | 63 | BLANK |
| ISOF63F/td> | 63 | 73 |
| ISOF80-BL | 83 | BLANK |
| ISOF80 | 83 | 89 |
| ISOF100-BL | 101 | BLANK |
| ISOF100 | 101 | 108 |
| ISOF160-BL | 153 | BLANK |
| ISOF160 | 153 | 159 |
| ISOF200-BL | 213 | BLANK |
| ISOF200 | 213 | 219 |
| ISOF250-BL | 261 | BLANK |
| ISOF250 | 261 | 267 |
| ISOF320-BL | 318 | BLANK |
| ISOF320 | 318 | 324 |
| ISOF400-BL | 400 | BLANK |
| ISOF400 | 400 | 406 |
| ISOF500-BL | 501 | BLANK |
| ISOF500 | 501 | 508 |
| ISOF630-BL | 651 | BLANK |
| ISOF630 | 651 | 660 |
| ISOF800-BL | 800 | BLANK |
| ISOF800 | 800 | 813 |
| ISOF1000-BL | 1000 | BLANK |
| ISOF1000 | 1000 | 1016 |

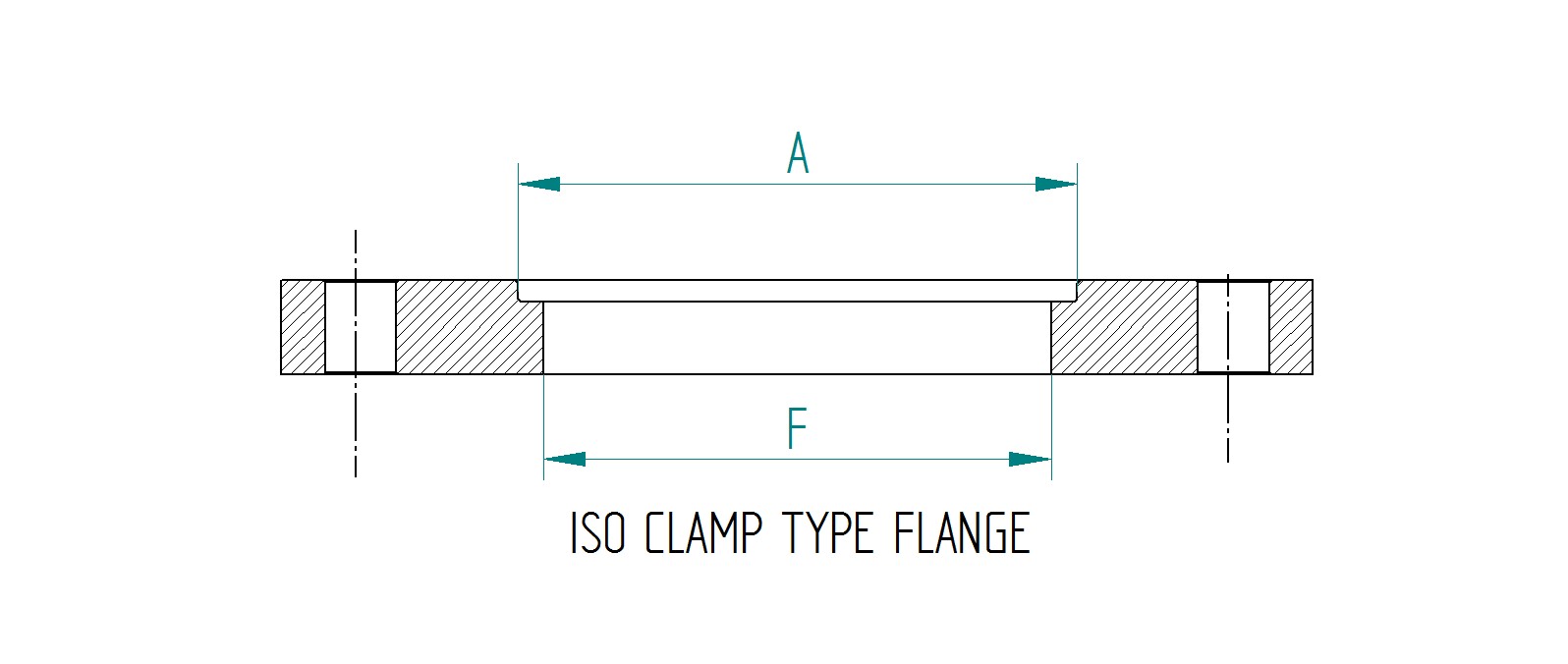

Dimensional Drawings
These drawings are to be used in conjunction with the CF Flange table
ISO F Flange
