Klein Flanges 304L Table:
| Stock ID | A | B |
|---|---|---|
| KF10-BL | BLANK | BLANK |
| KF10-6 | 6.47 | 6.47 |
| KF10-13 | 12.82 | 11.45 |
| KF16-BL | BLANK | BLANK |
| KF16-6 | 6.47 | 6.47 |
| KF16-10 | 9.65 | 9.65 |
| KF16-13 | 12.82 | 11.45 |
| KF16-19 | 19.30 | 17.39 |
| KF25-BL | BLANK | BLANK |
| KF25-6 | 6.47 | 6.47 |
| KF25-9 | 9.65 | 9.65 |
| KF25-13 | 12.95 | 9.52 |
| KF25-19 | 19.30 | 18.16 |
| KF25-25 | 25.65 | 23.74 |
| KF40-BL | BLANK | BLANK |
| KF40-6 | 6.47 | 6.47 |
| KF40-10 | 9.65 | 9.65 |
| KF40-13 | 12.82 | 11.83 |
| KF40-19 | 19.30 | 18.16 |
| KF40-25 | 25.65 | 23.74 |
| KF40-38 | 38.35 | 36.44 |
| KF50-BL | BLANK | BLANK |
| KF50-6 | 6.47 | 6.47 |
| KF50-13 | 12.82 | 12.82 |
| KF50-19 | 19.30 | 18.16 |
| KF50-25 | 25.65 | 23.74 |
| KF50-38 | 38.35 | 36.44 |
| KF50-50 | 51.01 | 49.14 |

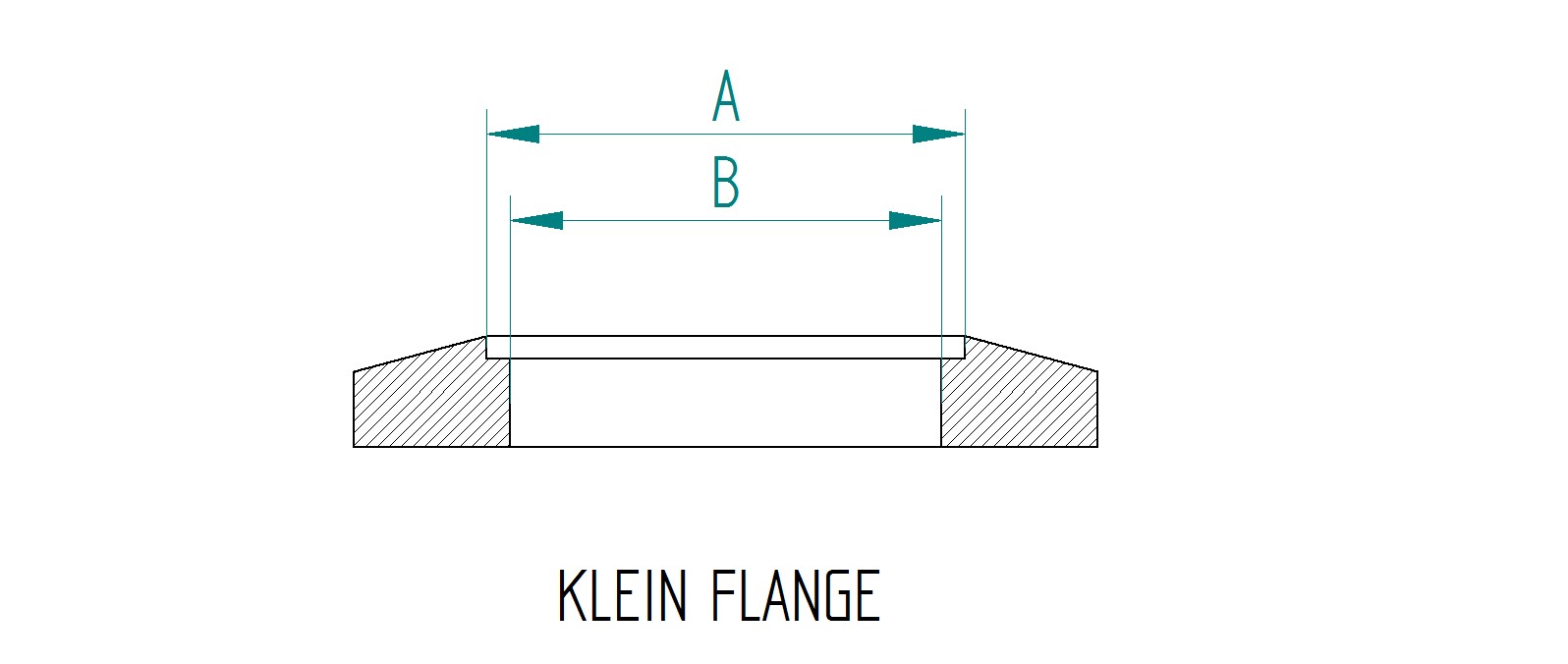

Dimensional Drawings
These drawings are to be used in conjunction with the Kelin Flange table
Klein Flange
