304L Wire Seal Flange Table:
| Stock ID | A | B |
|---|---|---|
| WS500-M | 33 | 508 |
| WS500-F | 33 | 508 |
| WS630-M | 33 | 660 |
| WS630-F | 33 | 508 |
| WS800-M | 34 | 813 |
| WS800-F | 34 | 813 |
| WS1000-M | 34 | 1016 |
| WS1000-F | 34 | 1016 |

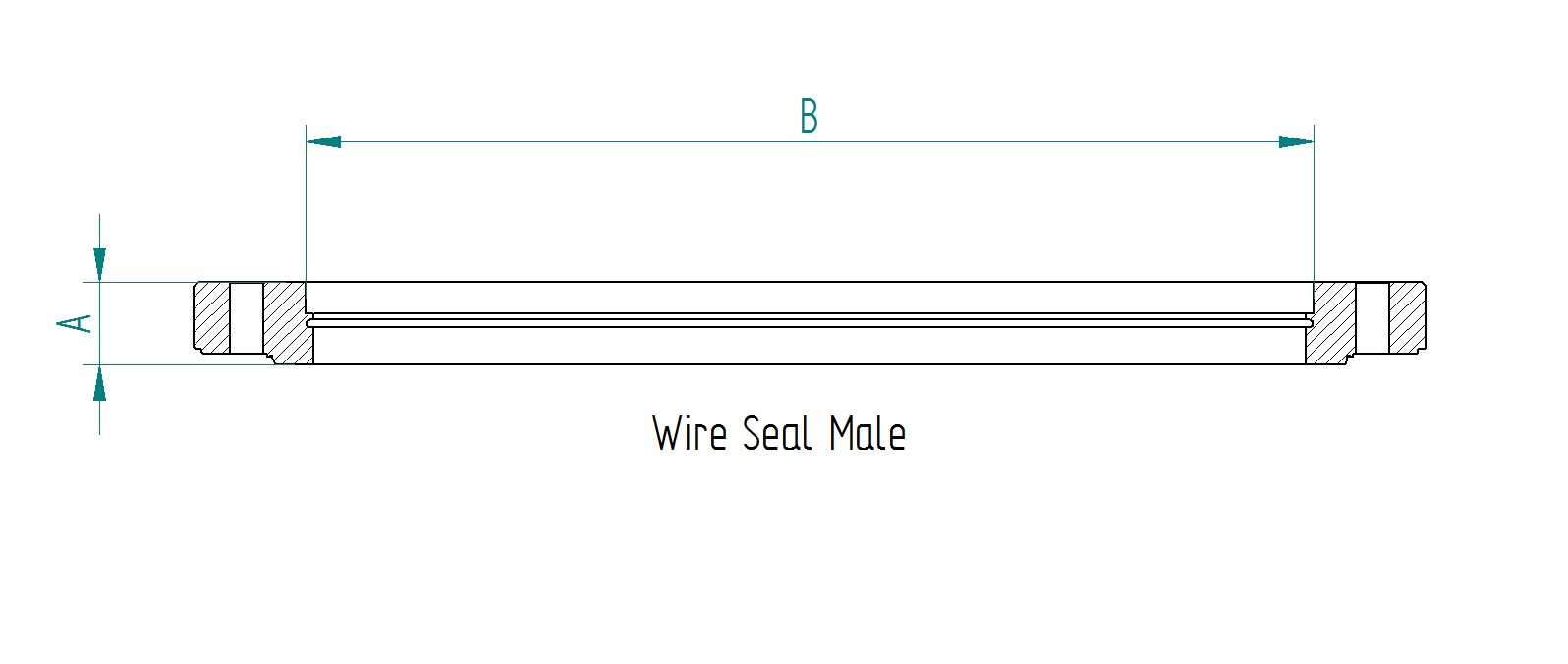

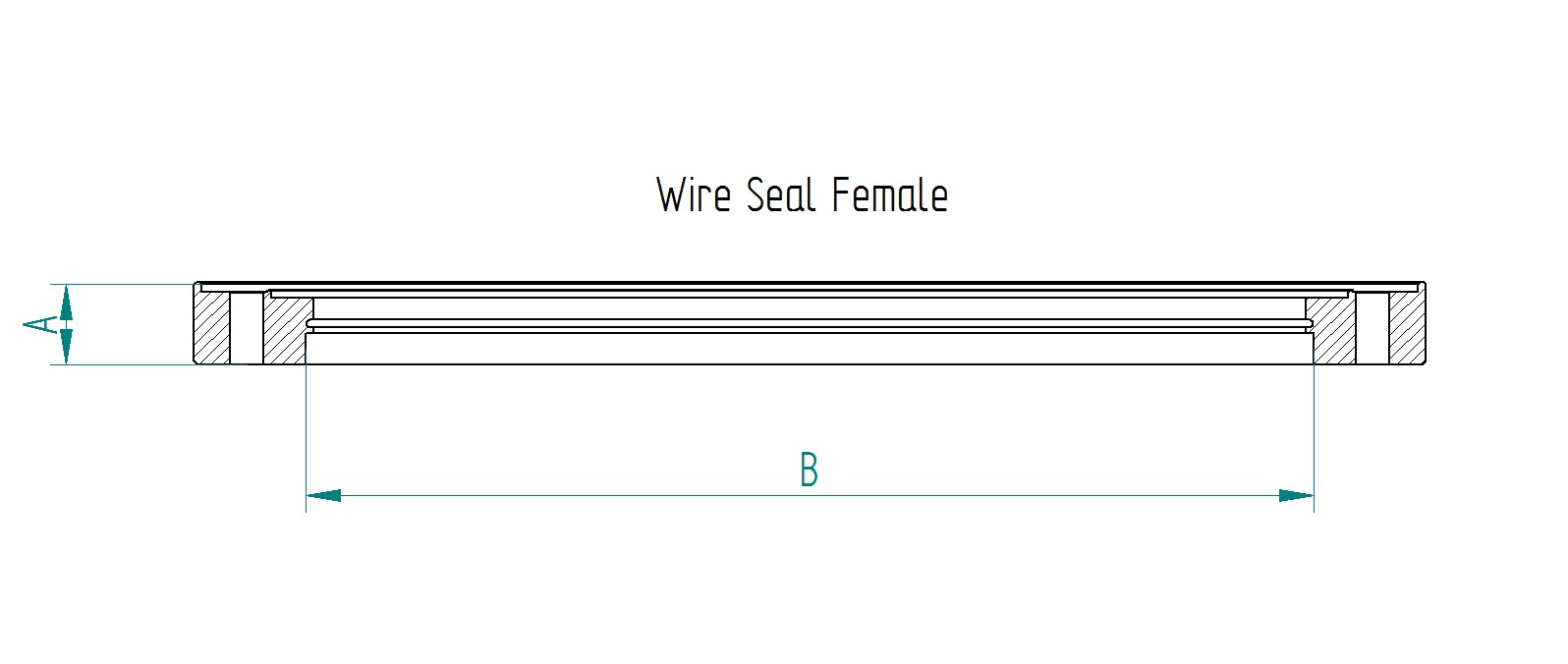

Dimensional Drawings
These drawings are to be used in conjunction with the wire seal flange table
Wire Seal Flange
