304L Zero Length Reducer CF Flanges

Stock ID	Small Flange	Large Flange	Bore
CFZ-34-50	34	50	15.7
CFZ-34-86	34	86	15.7
CFZ-34-70	34	70	15.7
CFZ-34-100	34	100	15.7
CFZ-34-150	34	150	15.7
CFZ-34-200	34	200	15.7
CFZ-34-250	34	250	15.7
CFZ-50-70	50	70	25.4
CFZ-50-86	50	86	25.4
CFZ-50-100	50	100	25.4
CFZ-50-150	50	150	25.4
CFZ-50-200	50	200	25.4
CFZ-50-250	50	250	25.4
CFZ-70-86	70	86	38.1
CFZ-70-100	70	100	38.1
CFZ-70-150	70	150	38.1
CFZ-70-200	70	200	38.1
CFZ-70-250	70	250	38.1
CFZ-86-100	86	100	50.8
CFZ-86-150	86	150	50.8
CFZ-86-200	86	200	50.8
CFZ-86-250	86	250	50.8
CFZ-100-150	100	150	63.5
CFZ-100-200	100	200	63.5
CFZ-100-250	100	250	63.5
CFZ-150-200	150	200	101.6
CFZ-150-250	150	250	101.6
CFZ-200-250	200	250	152.4

304L Zero Length Reducer Flanges

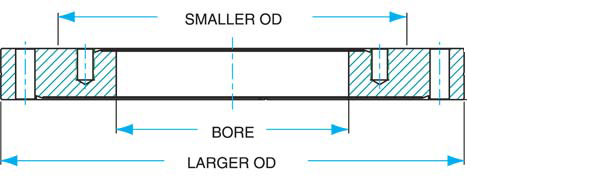

This drawing is for use with zero length reducer flanges table
